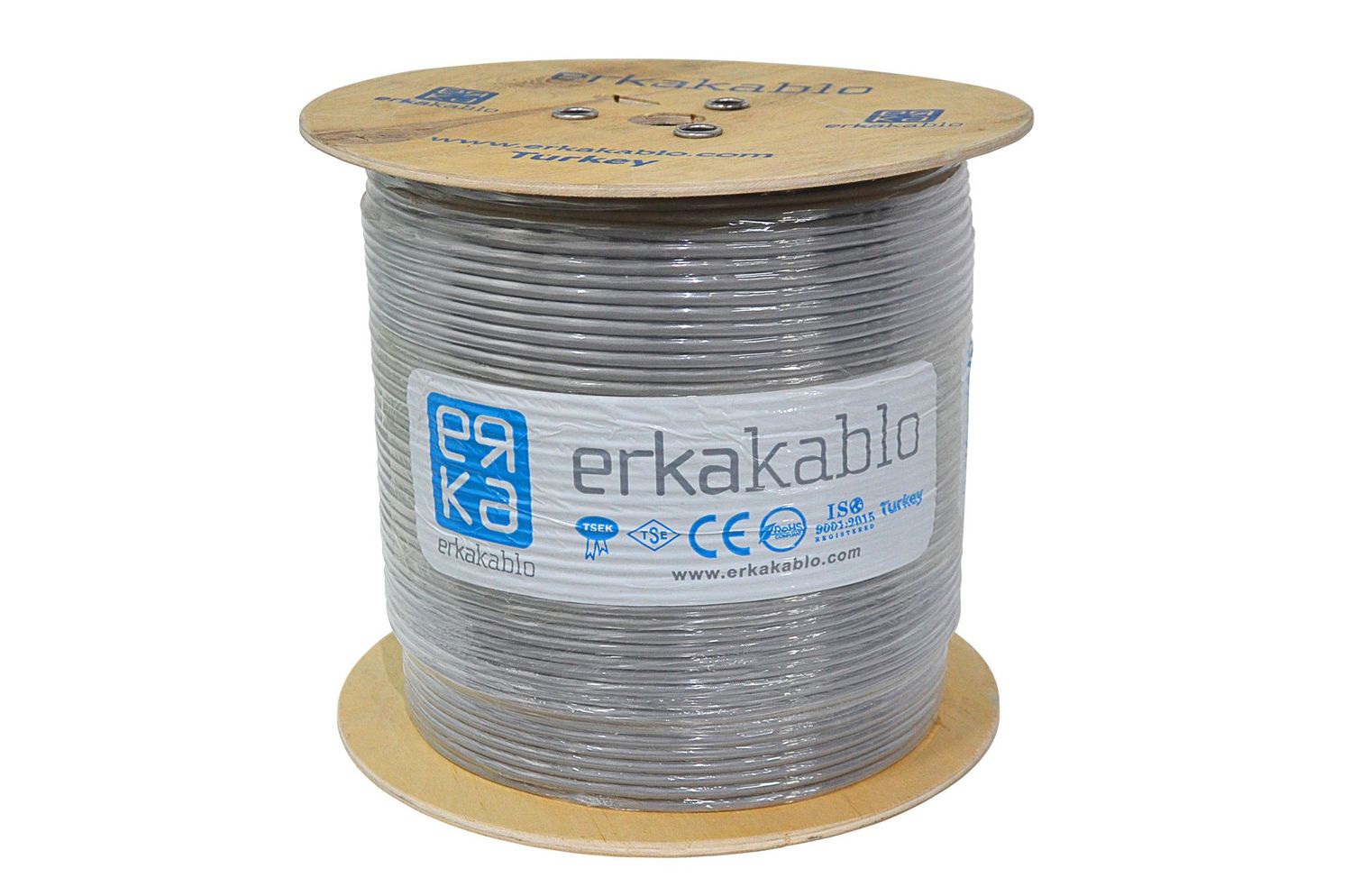

CABLE RESEAU INDOOR CAT6 F/UTP - CUIVRE - BOBINE 500M - PVC - AWG23 - GRIS - ERKA

د.ج85.00
En stock
Détails du produit
Brand: ERKA

CABLE RESEAU INDOOR CAT6 F/UTP - CUIVRE - BOBINE 500M - PVC - AWG23 - GRIS - ERKA

  • Cable Construction

Inner Conductor: Electrolytic Copper
Connector Diameter:
( 23AWG )
Insulation: 1.05 Solid PE
Lay-up: Cores twisted together pairs and all pairs with seperator.
Screen: Pet Foil %100, Al-Pet Foil %100 and 26Awg CuSn Ground Wire
Outer Sheath: HFFR LSZH Grey
Sheath Diameter: 7,50 mm
Standards: ANSI/TIA-568-C.2 / IEC-61156-5 / IEC-11801
Cable Weight( kg/km ): 48
Standart Packing: 500 m
  • Electrical Parameters
Conductor Resistance 72 OHM/KM
Resistance Unbalanced 2%
Test Voltage 1200V
Min. Bending Radius 8xD
Capasitance 56 pf/m
Conductor Resistance >5000 MOHM
Resistance Unbalanced 250V
Test Voltage Fixed: -30 °C… +70 °C I Flexible: 0 °C… +50 °C
Min. Bending Radius 67-69%
